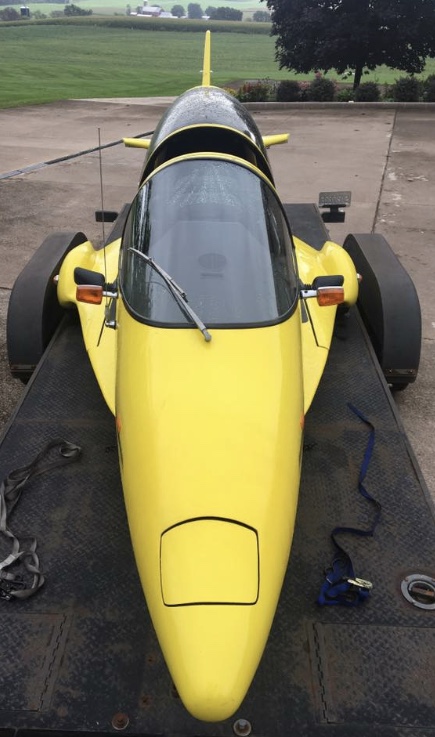

Pulse #276


Year............ April 1987
Color............Yellow
Honda 1100cc
Engien #SC02E-2133476
VIN ...17JTW15G0HM000276

Today, #276 is owned by Lorain & Marilyn Reese of Austinburg, Ohio

Original Owner......Curtis Moore.....then Pete & Cindy Hatfield (Hatfield Motorsports) ........ Muscatine, Iowa


HISTORY of PULSE #276

Pete Hatfield of Muscatine, Iowa was a Honda motorcycle dealer and he purchased this Pulse from the original owner. It has the Fiero type pop-up headlight and a 1983 Honda Gold Wing 1100cc 4 cylinder water cooled engine. It has 5 speeds plus reverse, heater, windshield wiper and fresh air vents.

Pete drove this Pulse with his wife as passenger to both the 2009 and 2010 National Pulse Rallys in Marion, Indiana. That is about 900 miles round trip counting miles driven while at the event.

This Pulse has always been garage stored and the first owner let the Pulse sit for 7 years prior to Pete buying it,

Here is a partial list of Pete's restoration in about 2008:

1. Rebuilt carbs, replaced starter, battery, spark plugs, rectifier. Replaced radiator hoses, rebuilt radiator, repeatedly flushed engine till clean. Replaced fuel lines cables and wiring. Replaced oil & filter multiple times and flushed till clean. Engine runs beautifully and starts with a touch of the key. It never overheats even in 100 degree weather.

2. All new tires, front wheel, battery cables, brake calipers, brake lining, brake lines, master cylinder, all light bulbs and headlight sealed beam. Many of the exterior running lights have been converted to LED.

3. Replaced all dash wiring and electrical gauge wiring and installed an all new digital dash custom built by Dakota Digital. The rewiring is all done with soldered and heat shrink connections. No scotch locks, twist connectors or tape only connections. The digital dash include digital readouts for speed, rpm, water temp, volts, fuel supply, odometer, oil pressure, front shocks air pressure and rear shocks air pressure. The gauges are user adjustable for upper and lower limits. Pete programmed the speedometer (airspeed) to a GPS while driving, it is dead on. Nearly $2,000 invested in this dash system alone.

4. There is an onboard air compressor with separate dash mounted switches for front and rear air pressure. There are new Autozone air shocks front and rear. The air system does not leak and stays where you put it till you change which is easily done on the fly. The switches are located right and left of the steering wheel just below the digital dash.

5. The stereo system has been completely replaced. There is a rare Fusion digital display radio that has a removable faceplate with a built in Ipod dock. It can hold most any model of Ipod. It currently houses a 16GB Ipod Nano that has close to 2,000 songs, but would probably hold twice that many. It probably has 750 Elvis songs on it. There are 4 Sony Explode speakers to deliver the sound, believe me, more than enough. Close to $1,000 invested in the sound system.

6. The windshield and canopy are original and are in excellent condition.

7. There is a new Zirgo radiator fan controlled by a Dakota Digital fan controller system. The fan cut-on and cut-off temps are customizable and user adjustable. It can even be programmed to run for set time period after ignition shut off. The fan is extremely quiet but there is an orange indicator light on the dash the lights any time the fan powers up.

8. There is a keychain remote that senses air pressures in all 4 of the tires. The air pressures on a Pulse can be difficult to check because everything is so covered. There is an electronic sensor on the valve stem at each wheel. Just press the button on the keychain remote and it displays air pressure at each tire. The remote can also be programmed to beep and/or vibrate with designated low or high pressure amounts. Works great and is accurate. About a $400 item.

9. There is a new custom built, stainless steel fuel tank with new sending unit and race car style gas cap. This tank is as big as it can be and still fit in there. It holds close to 12 gallon which is a huge range. On our trips to the rally, we consistently got between 55 and 60 miles per gallon. It runs fine on regular, premium or even ethanol. That’s just how a Gold Wing engine is.

10. When Pete purchased the Pulse, there was about 2,800 miles on it which is all the original owner put on it. He was older and just didn’t drive it much. Pete installed the digital dash at 6,259 miles. The new dash started at 0 on the odometer and now shows 2,860 miles so, all told, there are 9,119 miles on it as of October 29, 2011.

11. The interior has been completely redone in about 2009. The seats have been rebuilt with black ultra-suede leather in a tufted pattern. The carpeting on the floor, side and inner canopy is black, low pile designed for rugged use with great looks. The side panels have been built new and are carpeted and leather covered to match the seats. The dash cover has also been covered in the same material as the seats.

12. An auxiliary fuse block and a central grounding block were installed during the dash conversion and are installed under the dash hood.

13. The choke cable is a custom made vernier dial type cable which allows applying and releasing the engine choke merely by twisting the dial instead of applying undo pressure to the dash by pulling the stiff choke. The throttle cable is also a custom made cable that now uses a bearing pivot on the foot end rather than just screw clamping the cable thus eliminating common cable breakage.

14. A few other nice touches include a bright green neutral gear indicator light located just between the shifter handle and the reverse power switch. There is a 12 volt power outlet and a storage pouch on the back of the driver’s seat. There are four lighted rocker switches for the outrigger running lights, the interior lights, a manual override for the cooling fan and one empty switch for future use. There is a port on the left rear with a hinged weather cover that is wired to the battery and is used to plug a battery maintainer into for long term storage.

15. While at the 2009 Pulse Rally, the Hatfields were interviewed with our Pulse by Ray Johnson as they were interested in our travels in the Pulse. That year were were the second longest distance attendee that actually drove a Pulse to the event.

That interview can be watched on you tube here:

http://www.youtube.com/watch?v=B7N6Zvzfjj4
